Intra-cardiac blood pressure monitoring system based on wireless ultrasound devices


ICPM unique capabilities
  Calibration Heart Failure Parameters Monitored Remarks
Left heart Catheterization LAP, LVP,ECG
Additionally: Aortic Pressure 		LAP
LVEDP, LVSP
RVEDP, RVSP 		LVEDP, LVSP are calculated from LAP, LVP and ECG data
Right heart Catheterization PAP, RAP, RVP
ECG 		PAP
RVEDP, RVSP 		RVEDP, RVSP are calculated from RAP, RVP and ECG data
PWCP LAP
LVEDP, LVSP
RVEDP, RVSP 		LVEDP, LVSP are calculated from PCWP, RVSP and ECG data
Terminology

LAP = Left Atrium Pressure
PWCP = Pulmonary Capillary Wedge Pressure
RAP = Right Atrium Pressure
PAP = Pulmonary Artery Pressure
LVEDP = Left Ventricle End-Diastolic Pressure
RVEDP = Right Ventricle End-Diastolic Pressure
LVSP = Left Ventricle Systolic Pressure
RVSP = Right Ventricle Systolic Pressure


Project Overview

CSI Frankfurt 2019 Plenary Meeting Presentation

Novel, non-invasive, Wireless Ultra Sound based Intra-Cardiac Pressure Monitoring (ICPM) system

Intended for NIHA Class II+ patients, passing heart catheterization at the first stage, Machine learning at the second.

  • Proprietary algorithm
  • Cloud deployed
  • No in body implants
  • No additional hardware devices development

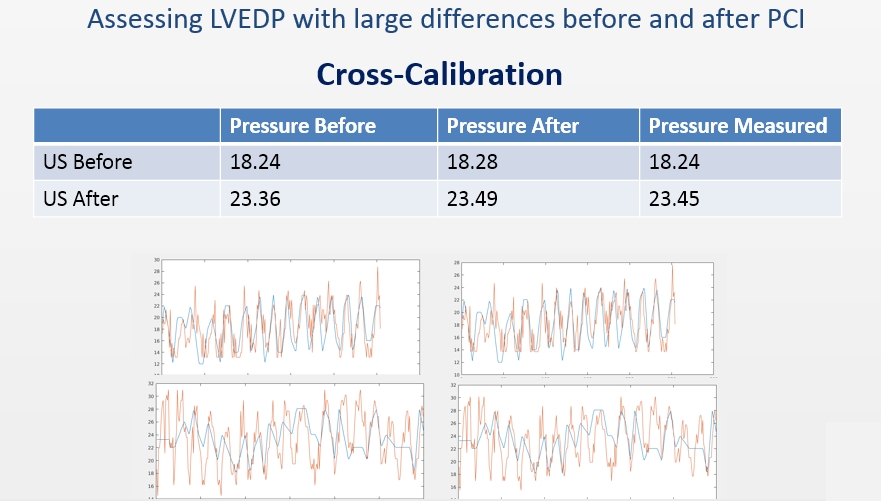

Human experiment results example

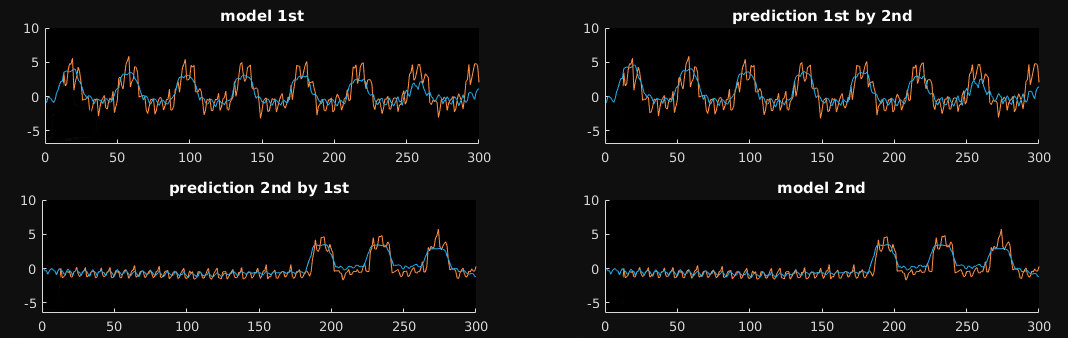

Sheep experiment achievements

During 6 month sheep experiments and the +/- 40% of weight   differences over time the model proved to be accurate: the calculated and actual measurements differ less than 1.5 mmHg on average for RA, LA, PAW.

Read more in our article and patent.
