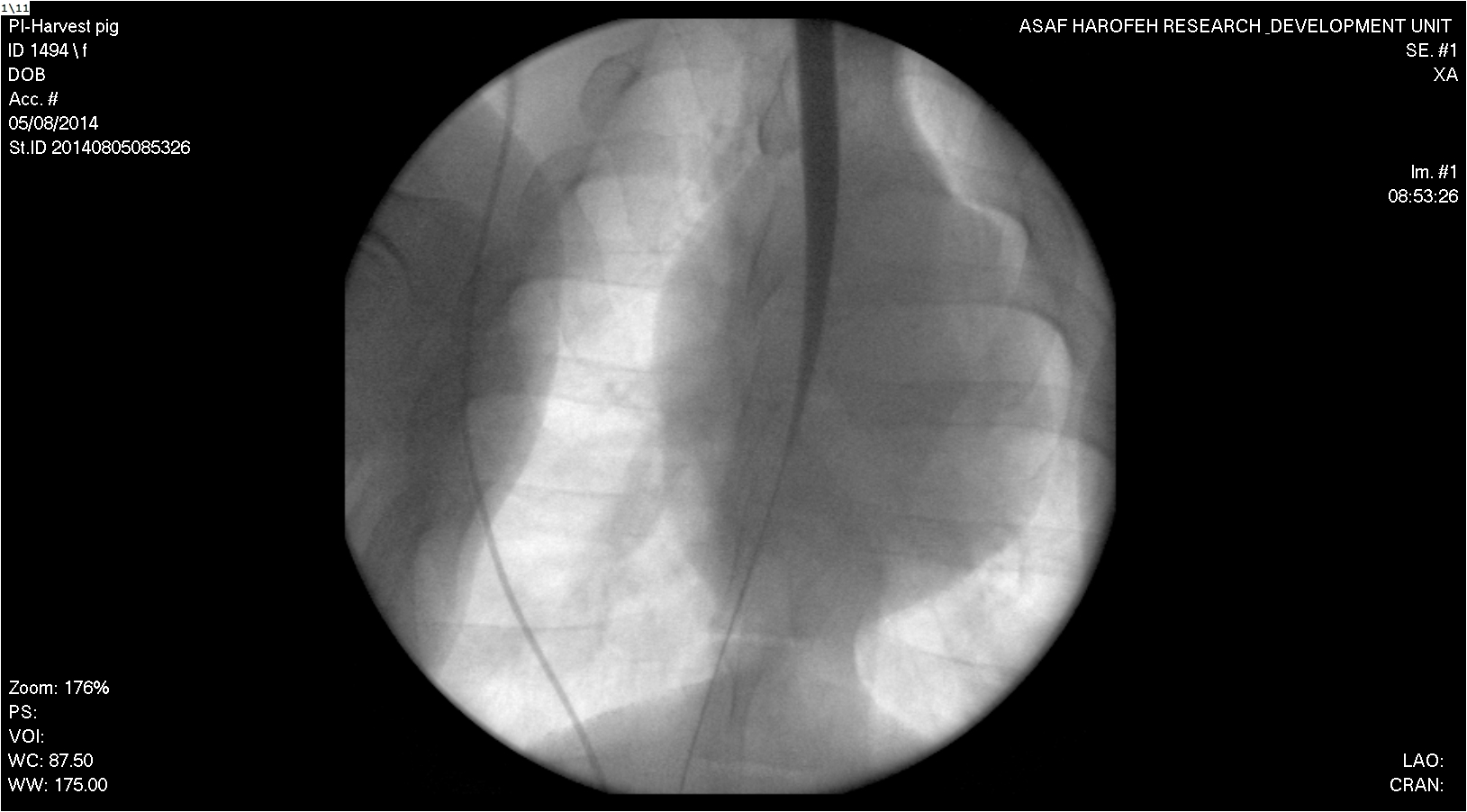

Assembly of sheath introducer which is placed over the wire in the right atrium (R.A.).

Extraction of the dilator and the wire. The sheath remains in the R.A.

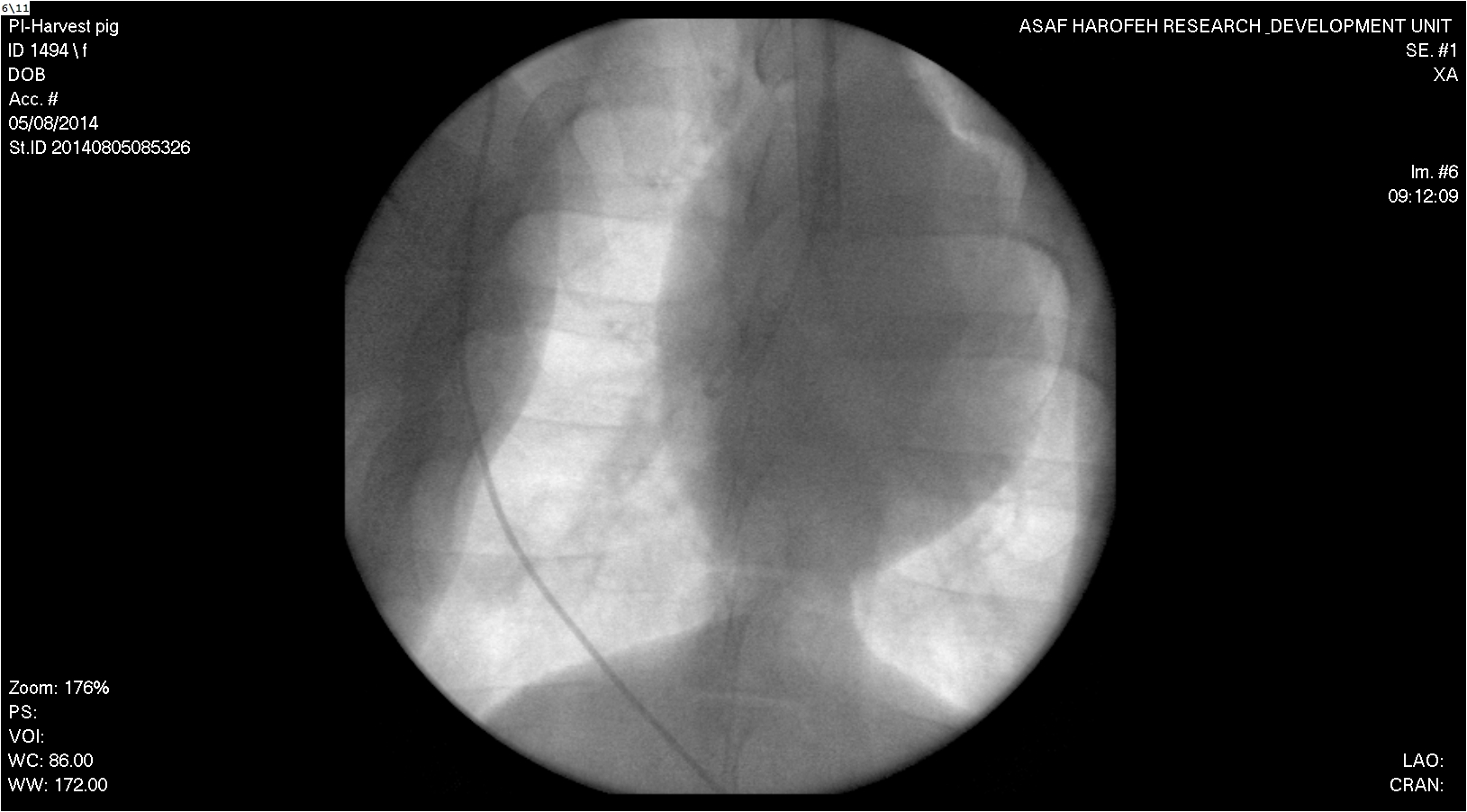

Right ventriculography through the sheath.

• Watch video

  +

Following positioning of the sheath at the apical portion of the right ventricle, the folded piezo-electric device with the pacing lead are advanced to the apical portion of the right ventricle.

• Watch video

  +

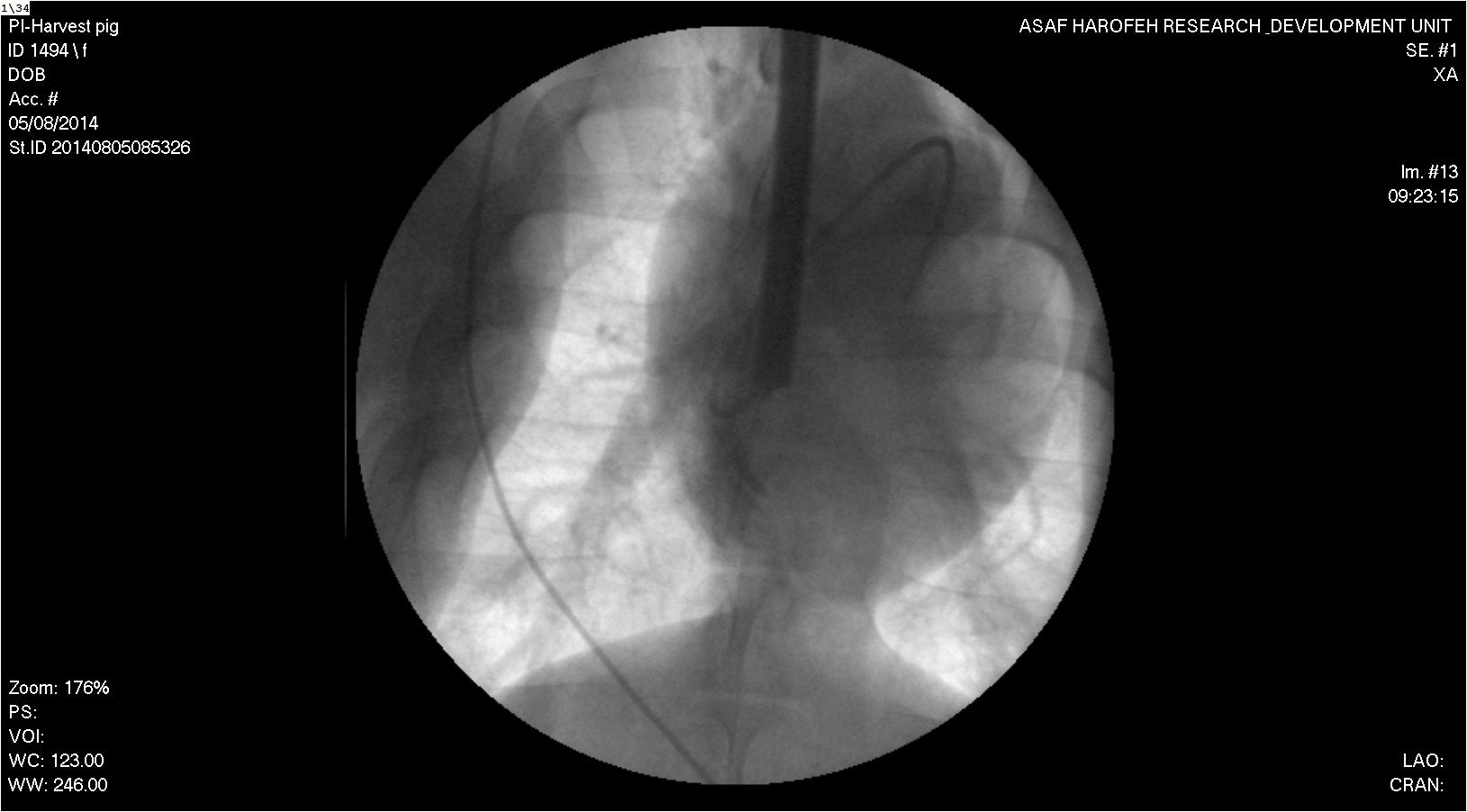

The adequate positioning of the folded device held by the delivery system is verified by contrast hand injection through the sheath (right ventricular apical engagement)

• Watch video

  +

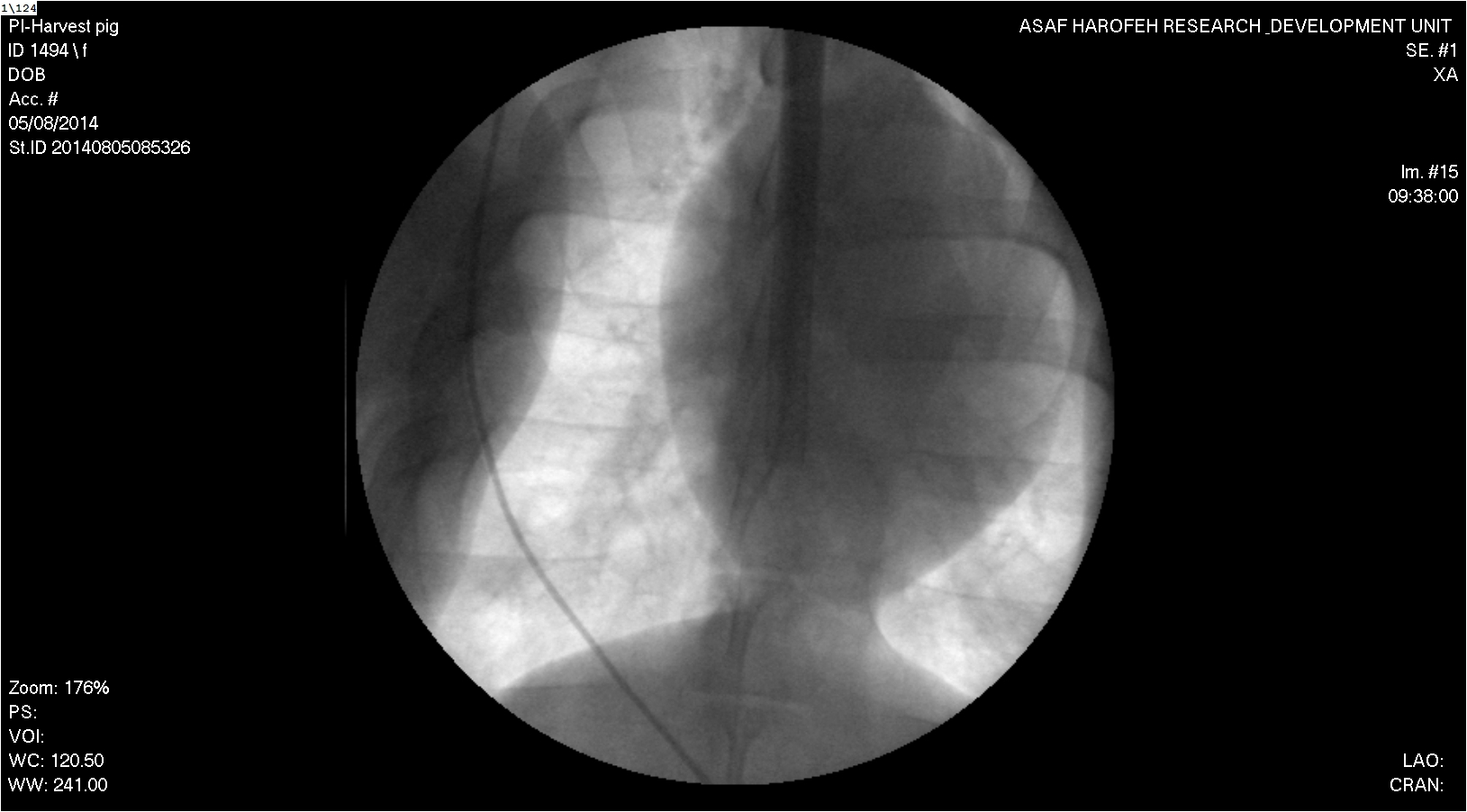

The screw is advanced to anchor in right ventricular apex.

• Watch video

  +

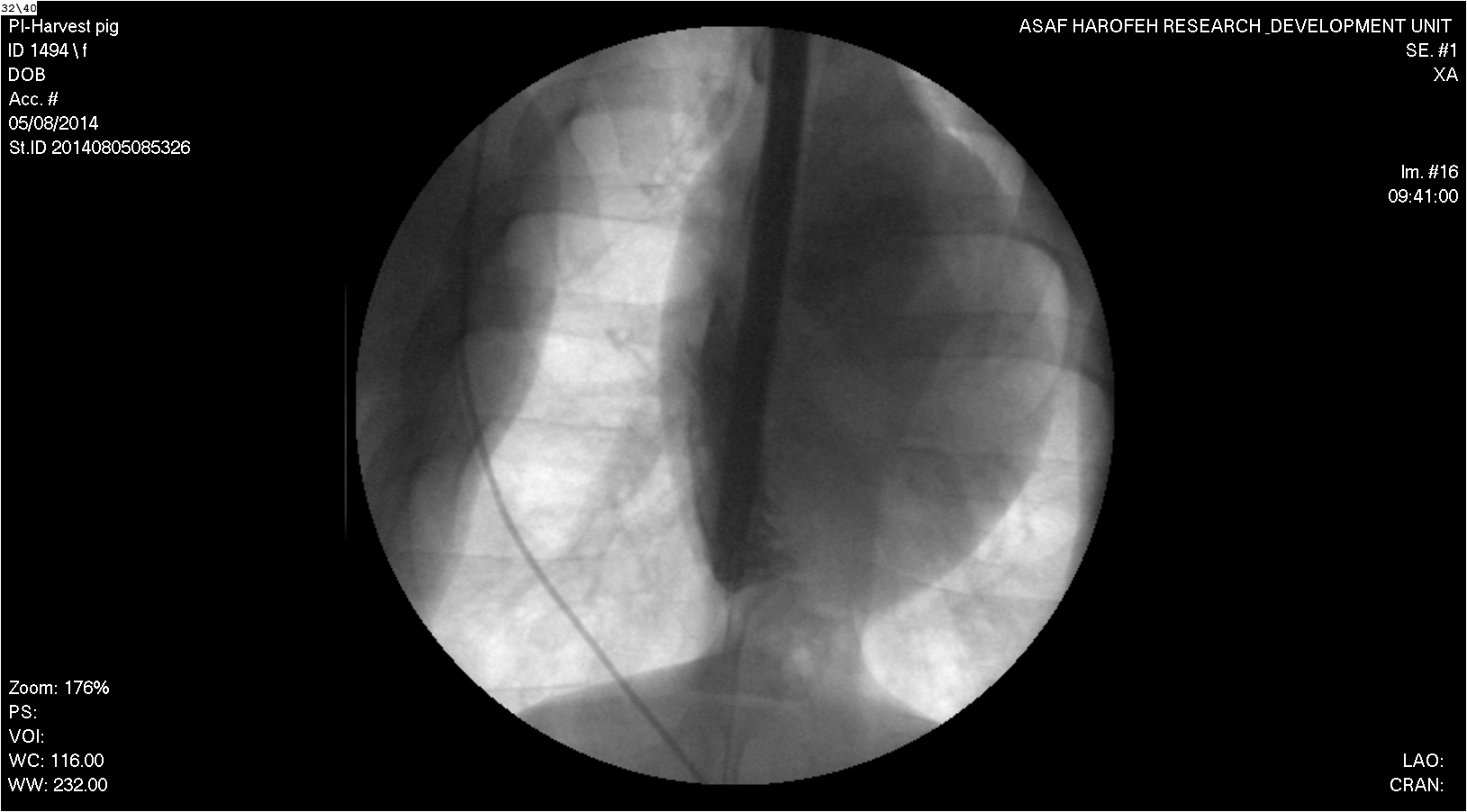

The sheath is withdrawn - deploying the flower-shaped piezo-electric device, which is held by the delivery system.

• Watch video

  +

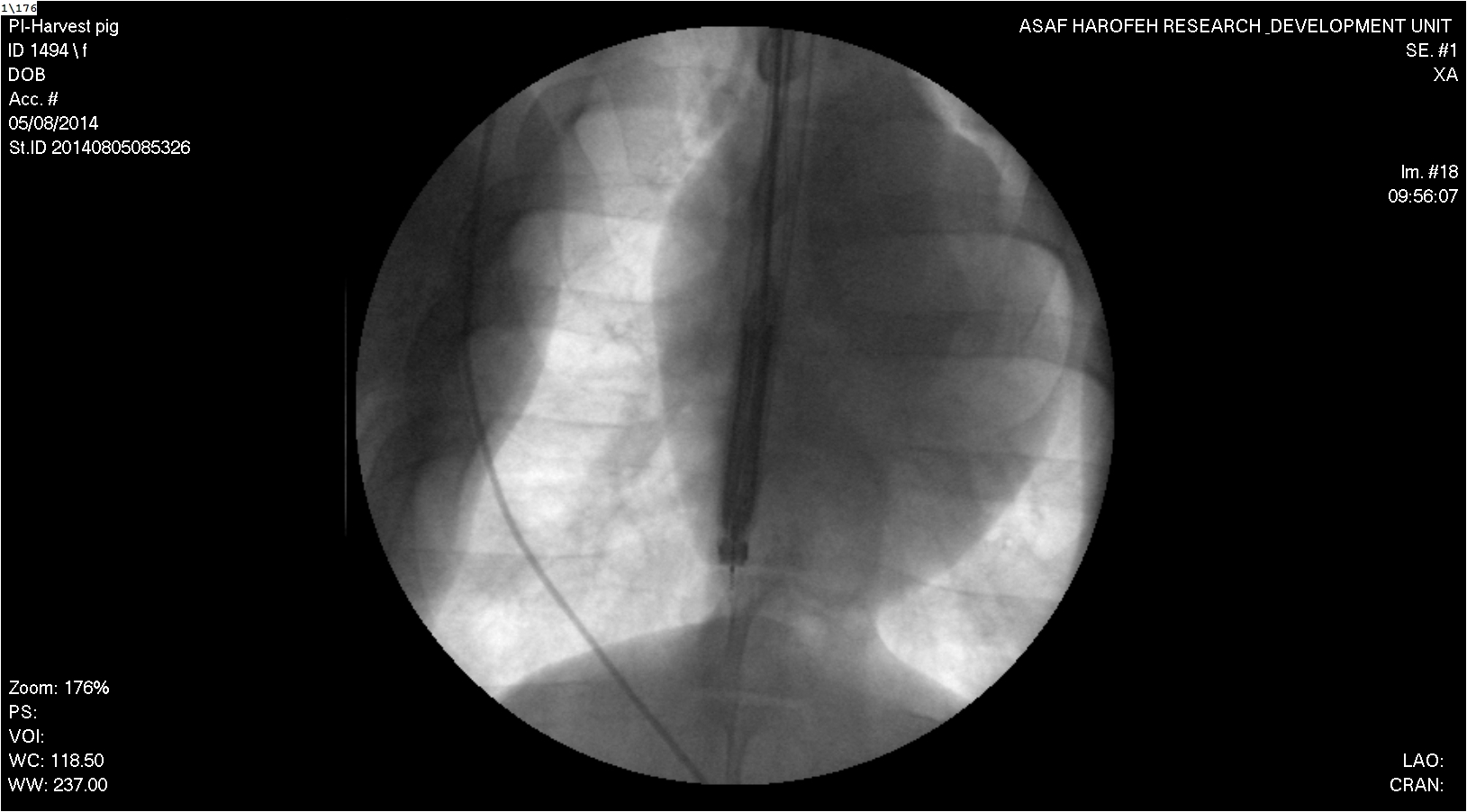

The piezo-electric device is well placed is the right ventricular apex; still held by the delivery system.

• Watch video

  +

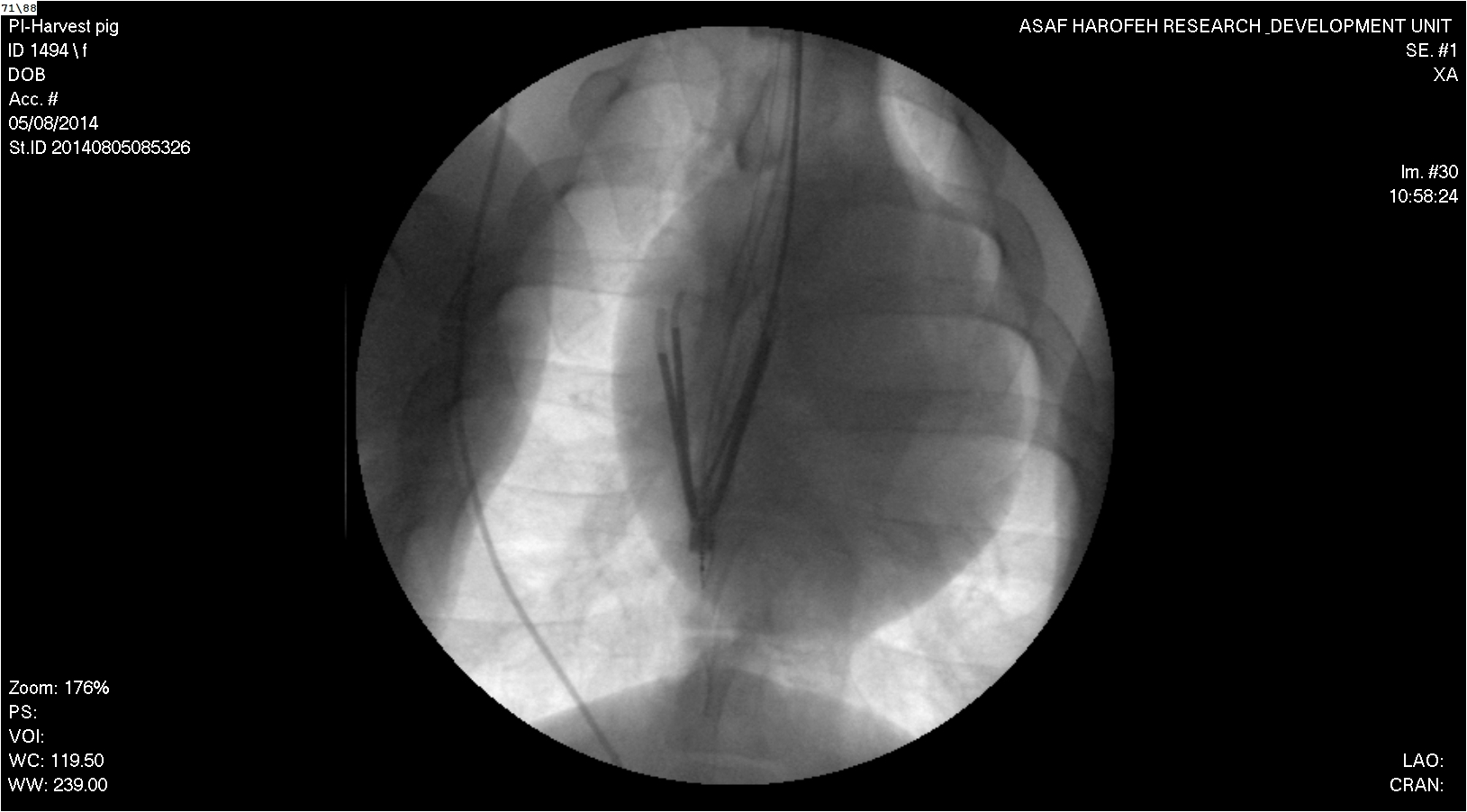

The delivery system is carefully released and withdrawn into the sheath, leaving the piezo-electric device adequately positioned with good function in the right ventricle.

• Watch video

  +

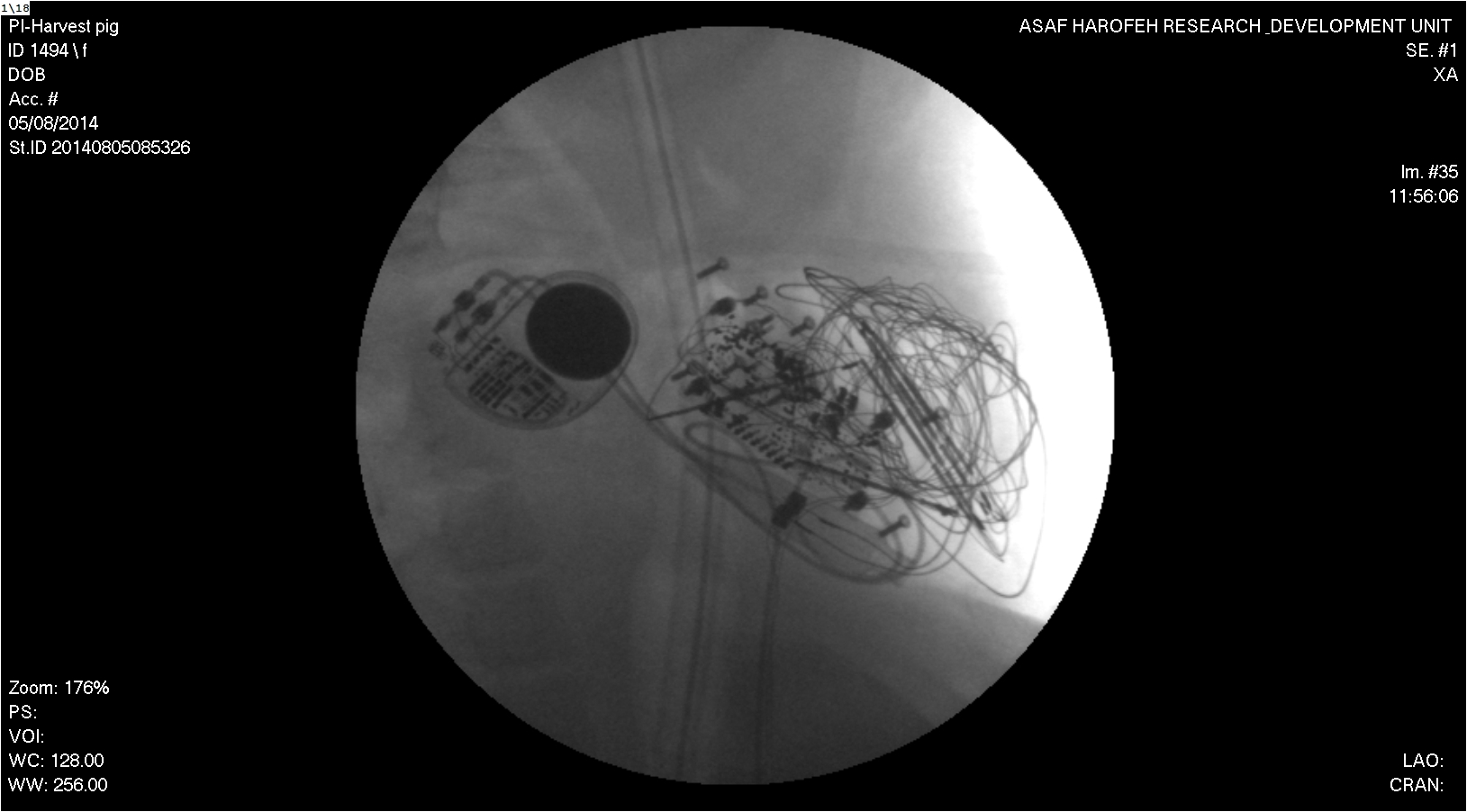

Pacemaker with no battery and control box with wires are placed under the skin in the neck of the animal.
